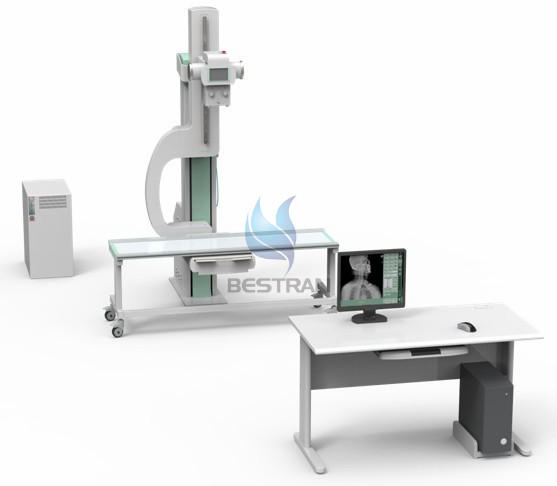

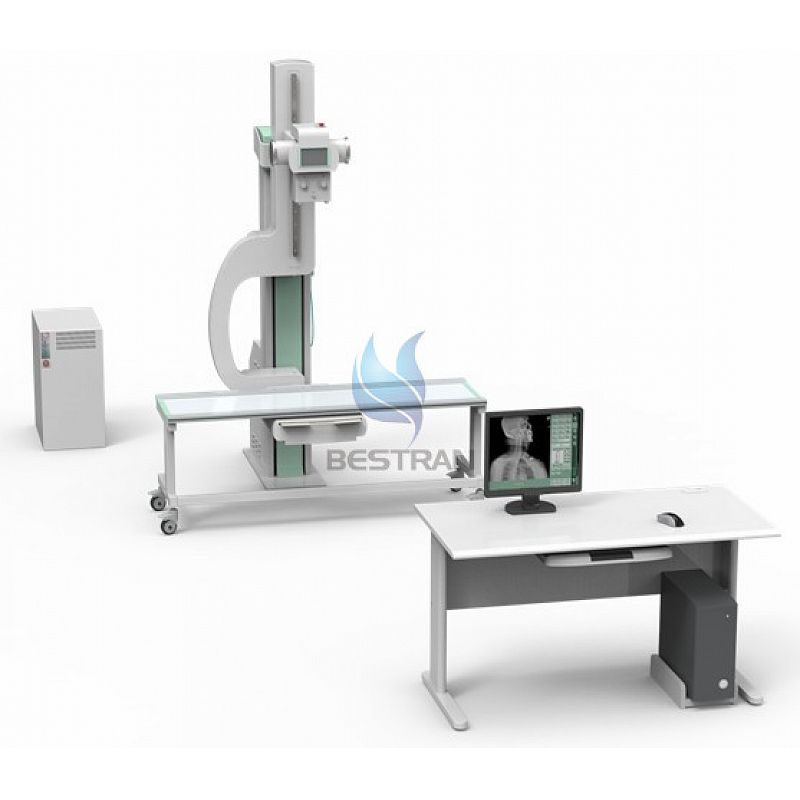

50KW High Frequency digital Radiography System

50KW High Frequency digital Radiography System

Model:BT-XR18

Power output: 50kW
Inverter frequency:60kHz
Dual-focus: Small focus:1.2 Large focus:0.6
Voltage:380V±38V
Frequency:50Hz±1Hz
Digital detector:flat panel detector
Efficient Area:430(H)*430(V)
Tube voltage:40kV-150kV
Tube current: 10mA-640mA
Exposure Time:1.0-10000ms
Control interface:LCD touch screen

Toshiba tube + Toshiba imported fixed flat panel detector
