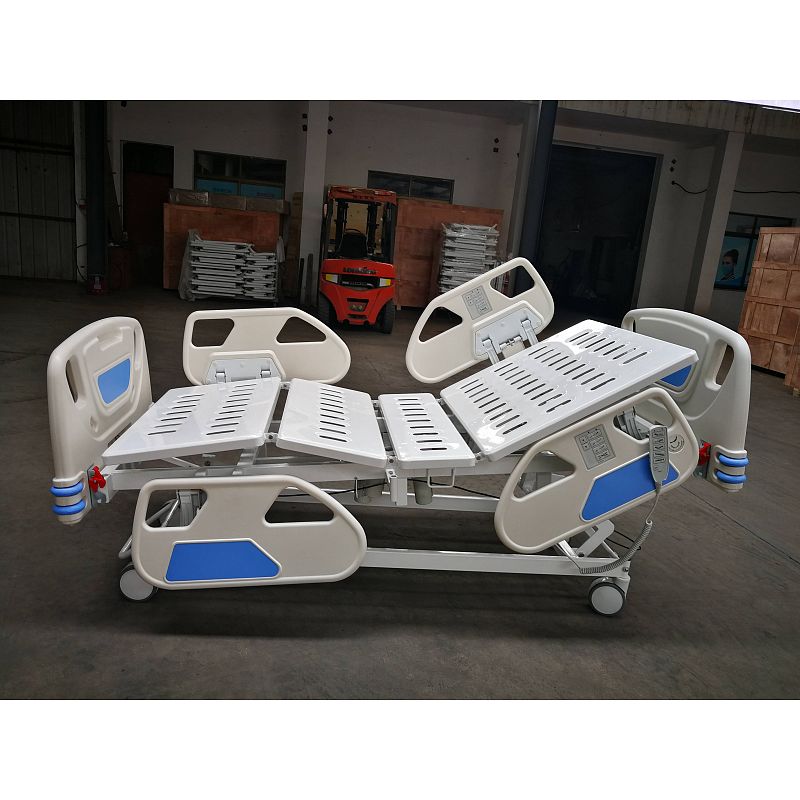

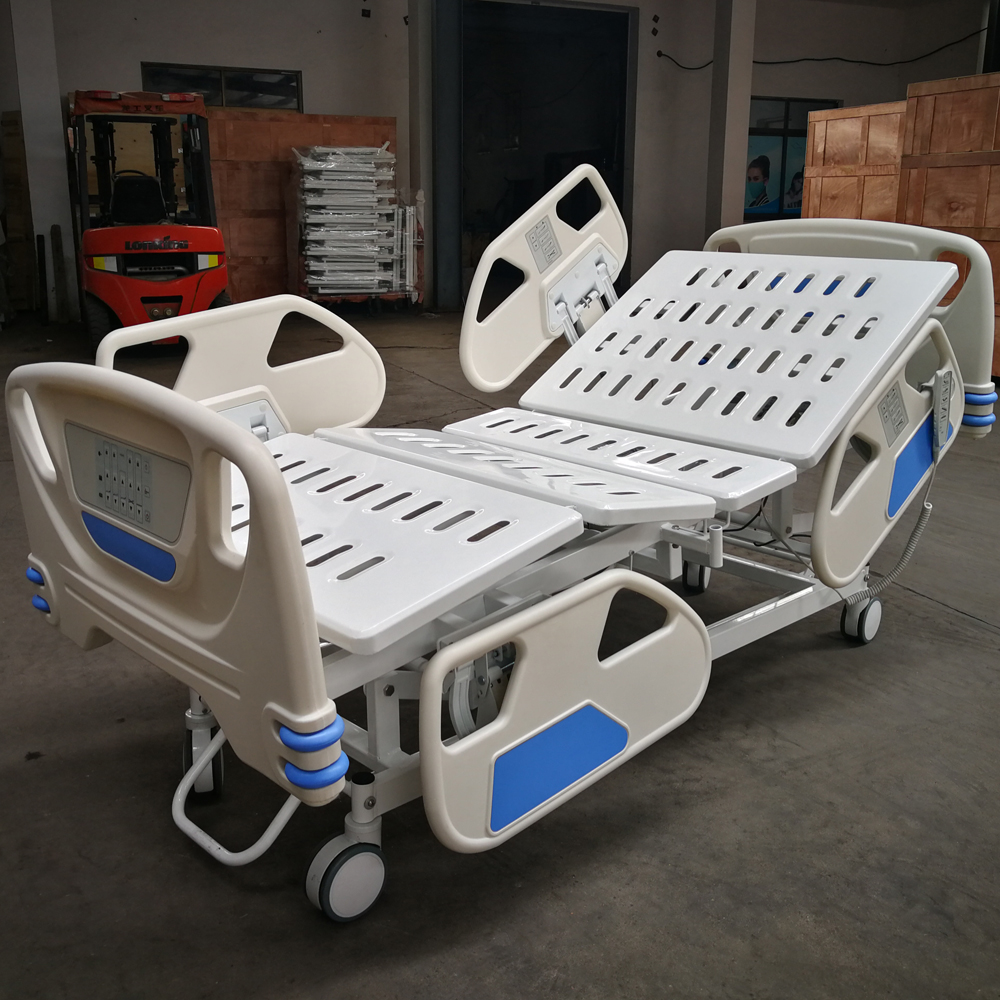

5-function electric hospital bed

5-Function Electric Hospital Bed,embedded operators on side rail and footboard ,backup batteries, electric CPR


Model: BT-AE005


Features:

1) Overallsize (L*W*H):2230*980*450-700mm, platform size:1960*880mm

2) Frame: steel, treated by sand-balsting and electrostatic powder-coating

3) Headboard/footboard:ABS,Detachable

4) Side rail: Detachable, ABS

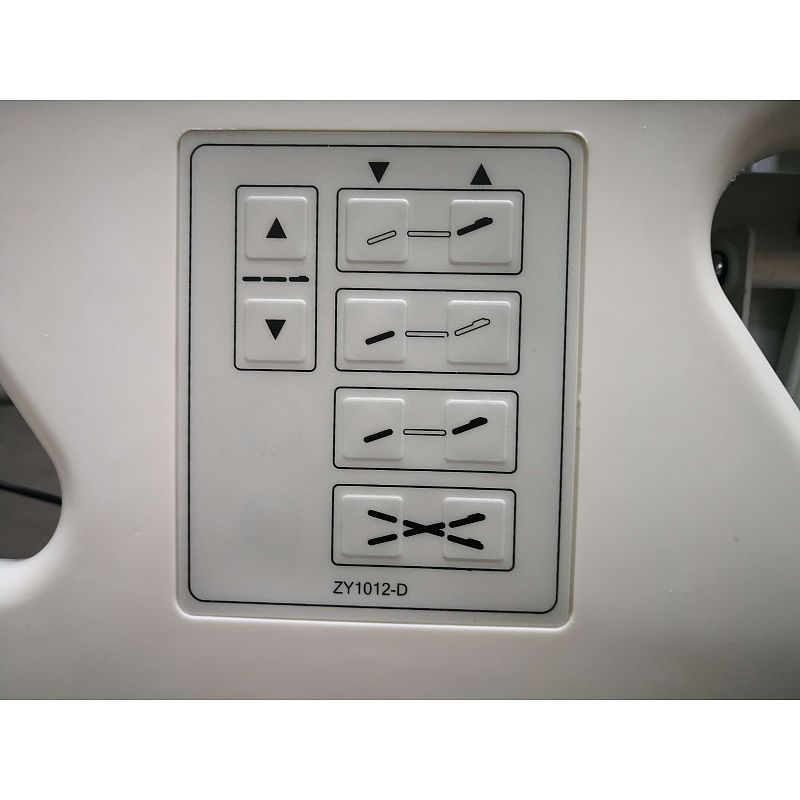

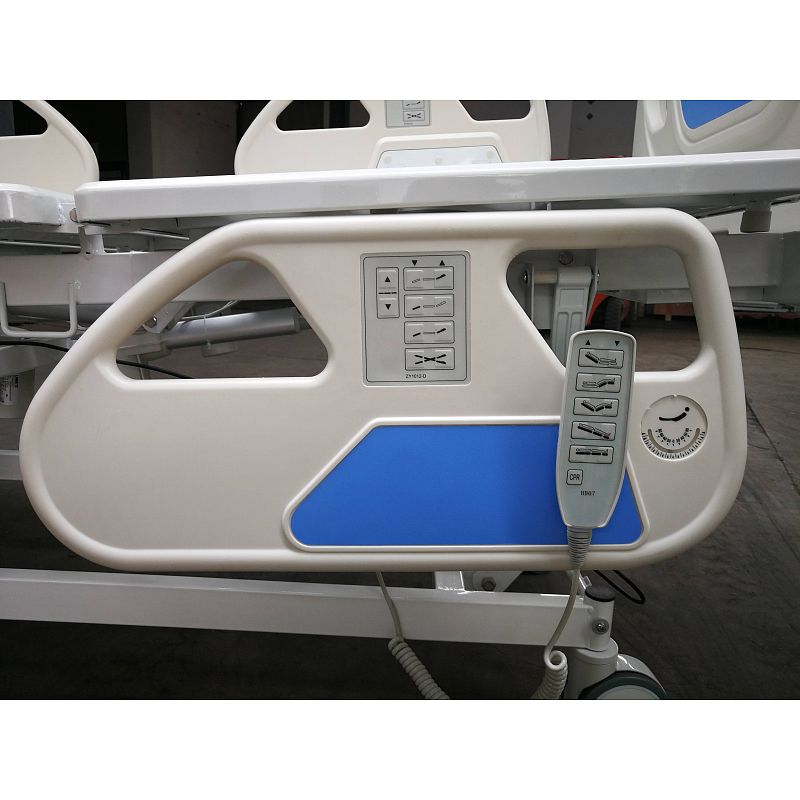

5) Rail controller: embedded on side rail at head side

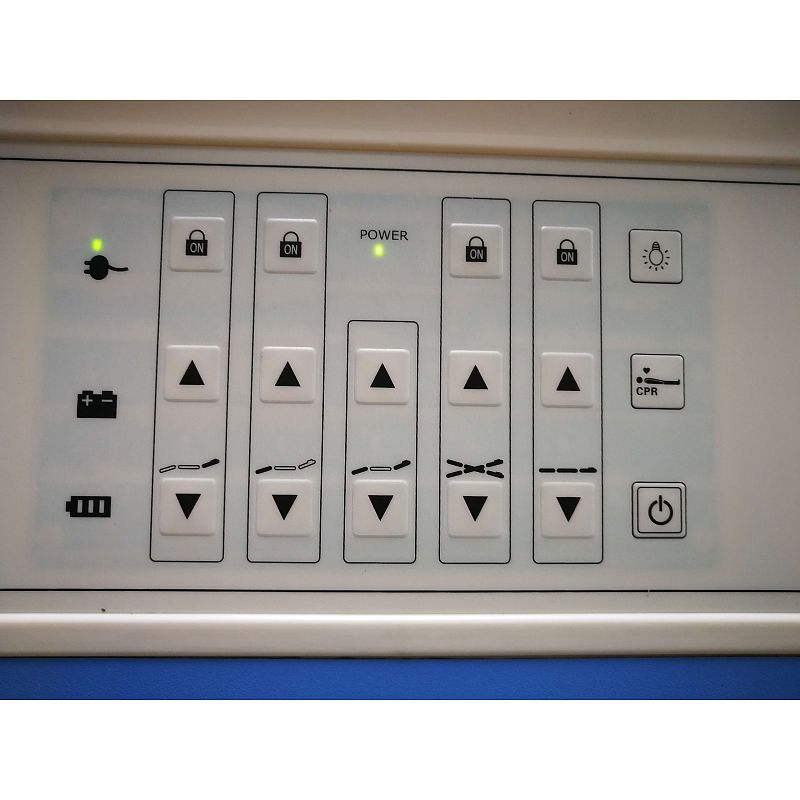

6) Nurse controller: embedded on footboard,all functions can be operated from it,and there are locks to control wrong operation by patients themselves from the side rails.

7) Motor: Linak motor from Denmark,with backup batteries

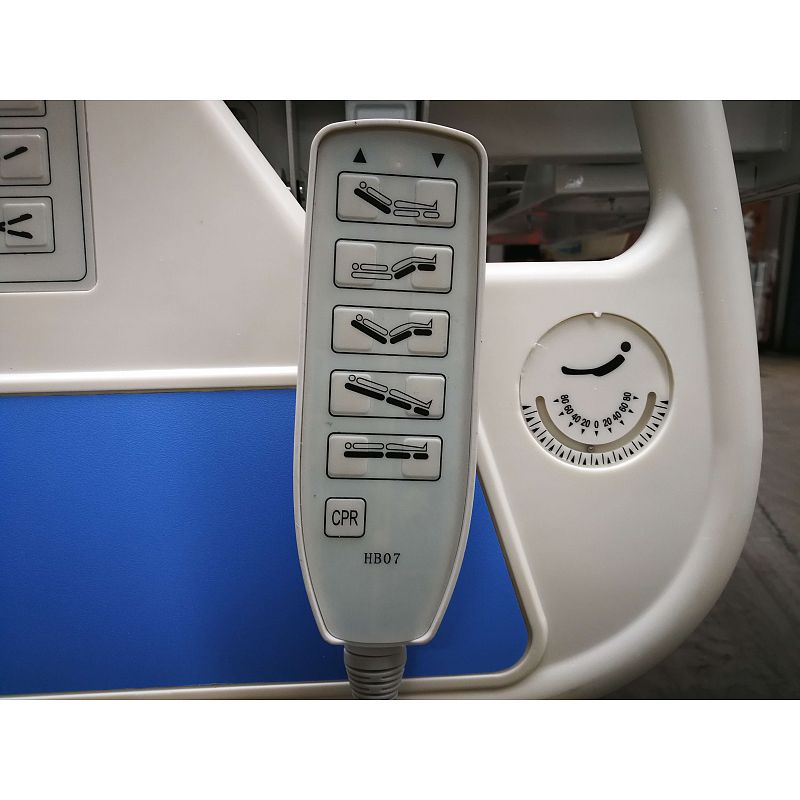

8) Electric CPR on hand controller; Battery power display on footboard                                                                                9) Castors: four Central-controlled silent wheels, φ125mm; One rise and fall guide wheel

10)Weight load: static safe load 400kg, dynamic safe load: 170kg

11)Standard accessories:I.V pole 1pc, IV pole holes 4pcs, Drainage hooks 2pcs, angle indicator for backrest 2pcs


5-function:

1) Backrest max upward angle: 70°

2) Footrest max upward angle: 30°

3) Height adjustment: 450-700mm

4) Trendelenburg: 12°

5)Anti-trendelenburg: 12°
